問7 次の C プログラムの説明及びプログラムを読んで, 設問に答えよ。
〔プログラムの説明〕

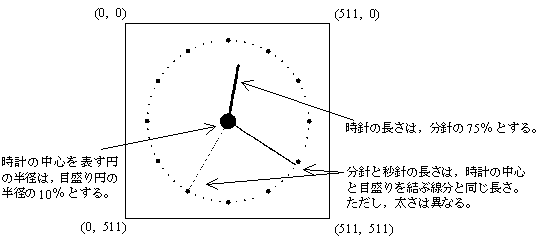

水平及び垂直方向に 512 ピクセル(画素)からなるビットマップ画面がある。 水平方向を X 座標,垂直方向を Y 座標とする。座標の割当てを図に示す。この画面上に, 指定した時刻の時計を描画する関数 DisplayClock を作成した。
目盛りは 1 周に 60 個描画する。5 個ごとに半径 6 ピクセルの大型円形マーカを, それ以外は半径 2 ピクセルの小型円形マーカを描画する。時計の針の仕様は表のとおりである。
表 時計の針の仕様
関数 DisplayClock は,次に示す ACLOCK 構造体へのポインタを引数とする。
typedef struct { int Ready; /* TRUE のとき目盛りの座標値を再計算しない*/ int Hour, Minute, Second; /* 描画する時刻 */ int Cx, Cy; /* 時計の針の回転軸の座標値 */ int Radius; /* 目盛りの半径 */ int PlateX[360], PlateY[360]; /* 1度単位の目盛り座標値 */ } ACLOCK;
描画する時刻は,ACLOCK 構造体のメンバ変数 Hour,Minute,Second で指定する。 それぞれの値の範囲は次のとおりである。
0 ≦ Hour ≦ 23 0 ≦ Minute ≦ 59 0 ≦ Second ≦ 59
この範囲を超えた値が設定された場合は,時計は正しく描画されない。
2 点(sx, sy)と(ex, ey)を結ぶ太さ Width ピクセルの線分を描画する関数 DrawLineと,中心(x, y),半径 r ピクセルの塗りつぶした円を描く関数 DrawCircle が用意されている。それぞれの関数の原型(プロトタイプ)は,次のとおりである。
void DrawLine( int sx, int sy, int ex, int ey, int Width );
void DrawCircle( int x, int y, int r );
〔プログラム〕
#include <math.h> #define TRUE 1 #define FALSE 0 typedef struct { int Ready; int Hour, Minute, Second; int Cx, Cy; int Radius; int PlateX[ 360 ], PlateY[ 360 ]; } ACLOCK; void DrawLine( int sx, int sy, int ex, int ey, int Width ); void DrawCircle( int x, int y, int r ); void DisplayClock( ACLOCK *pt ) { const double Rad = 3.14159265359 / 180.0; const int LargeMark = 6; const int SmallMark = 2; const int HourHand = 7; const int MinuteHand = 3; const int SecondHand = 1; int angle, Size, Hx, Hy, w, x, y; if ( pt->Ready == FALSE ) { /* 座標を計算する */ for ( w = -90, x = y = 0; w < 270; ) { pt->PlateX[x] = pt->Cx + (int)(pt->Radius*cos(w*Rad)); pt->PlateY[y] = pt->Cy + (int)(pt->Radius*sin(w*Rad)); } pt->Ready = TRUE; } for ( angle = 0; angle < 360; angle += 6 ){ /* 目盛りを描画する */ if ( ) Size = LargeMark; else Size = SmallMark; DrawCircle( pt->PlateX[angle], pt->PlateY[angle], Size); } angle = pt->Second*6; /* 秒針を描く */ DrawLine( pt->Cx, pt->Cy, pt->PlateX[angle], pt->PlateY[angle], SecondHand ); angle = ; /* 分針を描く */ DrawLine( pt->Cx, pt->Cy, pt->PlateX[angle], pt->PlateY[angle], MinuteHand ); if ( pt->Hour >= 12 ) pt->Hour -= 12; angle = ; /* 時針を描く */ Hx = ( pt->Cx + pt->PlateX[angle] ) / 2; Hx = ( Hx + ) / 2; Hy = ( pt->Cy + pt->PlateY[angle] ) / 2; Hy = ( Hy + pt->PlateY[angle] ) / 2; DrawLine( pt->Cx, pt->Cy, Hx, Hy, HourHand ); DrawCircle( pt->Cx, pt->Cy, pt->Radius / 10 ); /* 中心軸を描く * / }
設問 プログラム中の に入れる正しい答えを,解答群の中から選べ。
a に関する解答群
ア w++ イ w++, x++, y++
ウ w++, x++, y-- エ w++, x+=6, y+=6
オ w+=6, x++, y++ カ w+=6, x+=6, y+=6
b に関する解答群
ア angle % 30 >= 0 イ angle % 30 != 0
ウ angle % 30 <= 30 エ angle % 30 == 0
オ angle / 30 == 0 カ angle / 30 != 0
c に関する解答群
ア pt->Minute
イ pt->Minute*6
ウ pt->Minute*6 + pt->Second
エ pt->Minute*6 + pt->Second/10
オ pt->Minute*6 + pt->Second/60
d に関する解答群
ア pt->Hour
イ pt->Hour*30
ウ pt->Hour + pt->Minute
エ pt->Hour + pt->Minute/2
オ pt->Hour*30 + pt->Minute/2
カ pt->Hour*30 + pt->Minute/60
e に関する解答群
ア pt->Cx イ pt->Cy
ウ pt->PlateX[angle] エ pt->PlateY[angle]
オ pt->PlateX[pt->Hour] カ pt->PlateY[pt->Hour]
